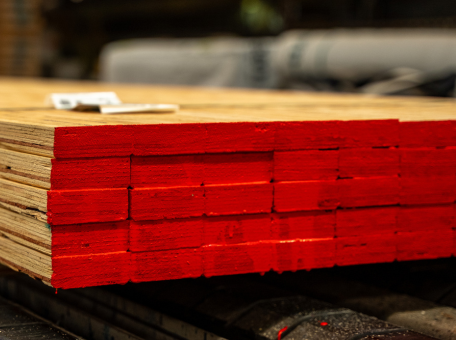

e-frame E10

e-beam is the premier Laminated Veneer Lumber (LVL) product available in Australia for replacing steel beams in residential floor systems and wall frames. Wesbeam e-frame E10 LVL is manufactured for use in place of traditional MGP10 sawn pine, in stick-build construction.

  1. LVL Products
  2. e-frame E10



Wesbeam e-frame E10 LVL is manufactured for use in place of traditional MGP10 sawn pine, in stick-build construction.

Previous Slide Next Slide
  • e-frame E10, e-frame E10, e-frame, E10, 10, E-10, MGP10, pine, stick, roof, wall, floor

Features of e-frame E10

Application

  • Floors
  • Roofs
  • Walls
  • Formwork

Treatment Level

  • Internal
  • External
  • Max Length 8.4
  • Max DIM 120 x 35 mm

On this page

Overview

Wesbeam e-frame E10 LVL is manufactured for use in place of traditional MGP10 sawn pine, in stick-build construction.

Applications include:

  • Wall studs
  • Ceiling joists
  • Hanging beams
  • Common rafters
  • Hip/valley rafters
  • Ridge beams/boards
  • Lintels

How long can LVL beams span?

The maximum span of LVL depends on the loading conditions and application type, as well at the available length of the product. Wesbeam e-frame E10 is available in lengths up to  8.4m and a thickness of 35mm and 45mm. Maximum sizes varies by state, please contact your local customer service team for further details.

Available Sizes

e-frame E10 is available in lengths up to 8.4m and a thickness of 35mm and 45mm*.

e-frame E10 Section DXB (mm)WASA
90 x 35✔
120 x 35✔
90 x 45✔✔

* Maximum length varies by state

Installation & Maintenance

General: How to handle and store your Wesbeam Laminated Veneer Lumber products.

  1. Wesbeam Laminated Veneer Lumber should be stored well clear of the ground on level bearers spaced at maximum 1800mm centres
  2. It should be covered to keep dry but still allow for ventilation
  3. Avoid placing LVL over areas susceptible to ponding.
