e-joist

e-joist is the premier I-joist product available in Australia.

  1. LVL Products
  2. e-joist

e-joist combines the latest engineered wood technology with LVL to create a floor joist that's lightweight, straight and strong and available in lengths up 13.2m.

Previous Slide Next Slide
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist
  • e-joist, ejoist, joist, e-joi, e-j, e-jo, jost, jist, ejost, ejist, i-joist, ijoist

Features of e-joist

Application

  • Floors
  • Roofs
  • Walls
  • Formwork

Treatment Level

  • Internal
  • External
  • Max Length 13.2
  • Max DIM 300 x 90 mm

On this page

Overview

e-joist combines the latest engineered wood technology with LVL to create a floor joist that's lightweight, straight and strong and available in lengths up 13.2m.

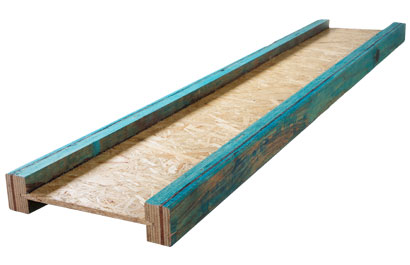

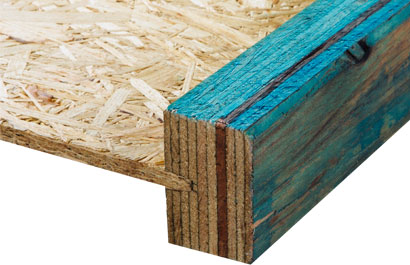

Manufactured from LVL and oriented strand board (OSB), e-joist has a similar strength as a solid LVL beam of the same size but uses much less wood, making it lighter and easier to handle.

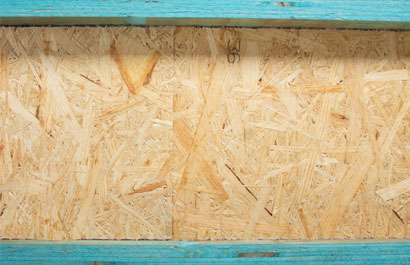

Service holes can easily be cut through the 9.5mm OSB web with the assistance of the e-joist design guide.

The Wesbeam Design Centre offers a floor design and quote service for Wesbeam customers. We have the only 3D timber software with whole-of-house load tracing capability.

Available Sizes

e-joist is available in a range of depths and flange widths as presented below.

Depths
Flange Width200240265300

45

ej20045ej24045 ej30045
63 ej24063ej26563*ej30063
90 ej24090ej26590*ej30090
NOTE: e‑joist sizes marked with an * are not available in all Australian States. Check with your local Wesbeam office or approved Wesbeam distributor for available stock sizes.
Hole Creation - Quick Reference

  • 1. All holes to be considered before cutting
  • 2. Maximum of 3 holes per span
  • 3. Grouping of holes
  • 4. Don't cut the blue flanges
  • 5. Distance from support
  • 6. Minimum hole spacing
  • 7. Position and neatness
  • 8. Cantilever holes
Previous Image Next Image

VIEW SERVICES HOLE GUIDE

Installation

Joist Support at External Walls

  • Nail joists at wall with 2/3.15 dia x 65mm long nails
  • Position nails to go through flange and avoid web
  • External support with rimboard
  • External support with e-joist continuous blocking
  • External support with double rimboard
  • External support

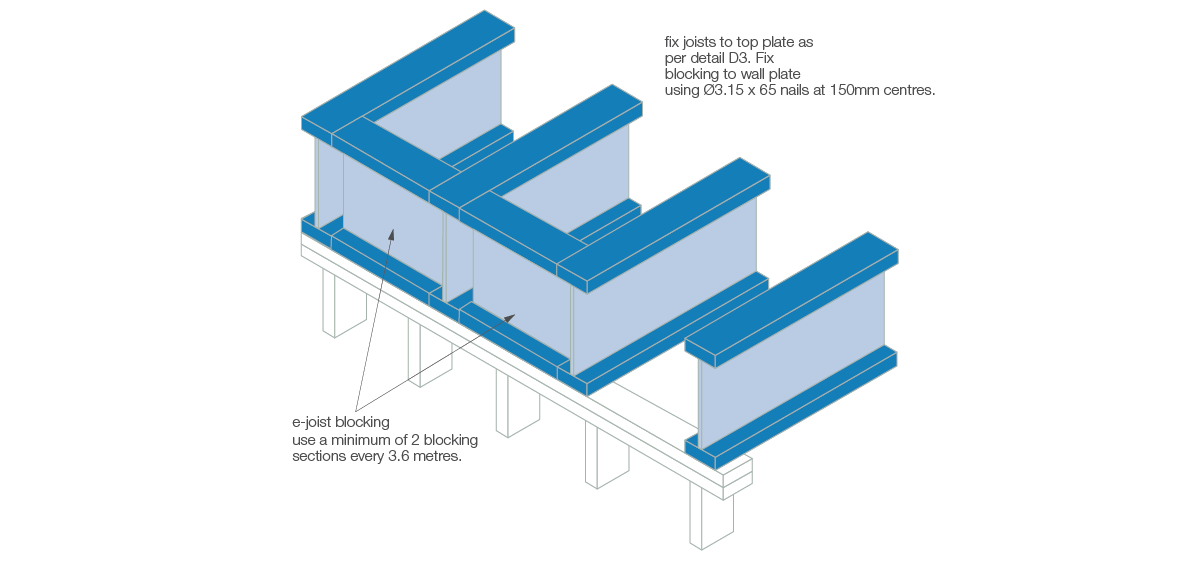

  • External support with minimum blocking

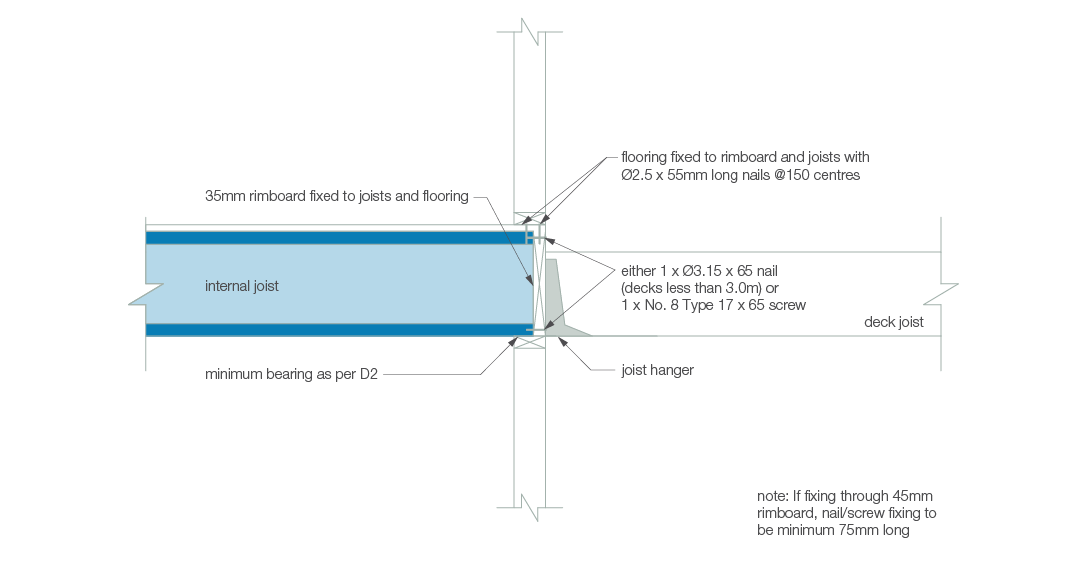

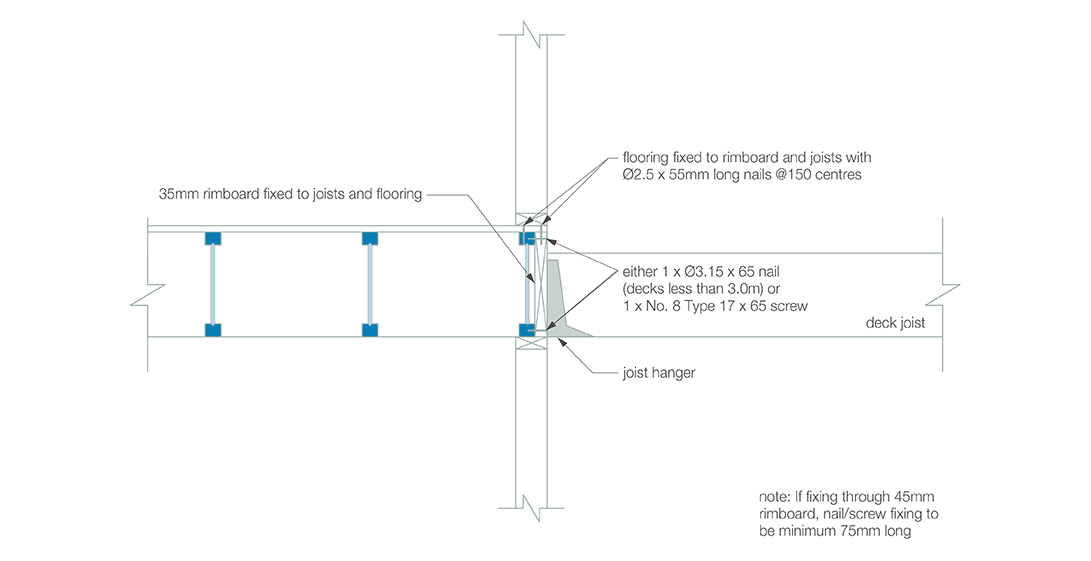

  • External support with 35mm rimboard to support balcony
  • External support with 35mm rimboard to support balcony - cont

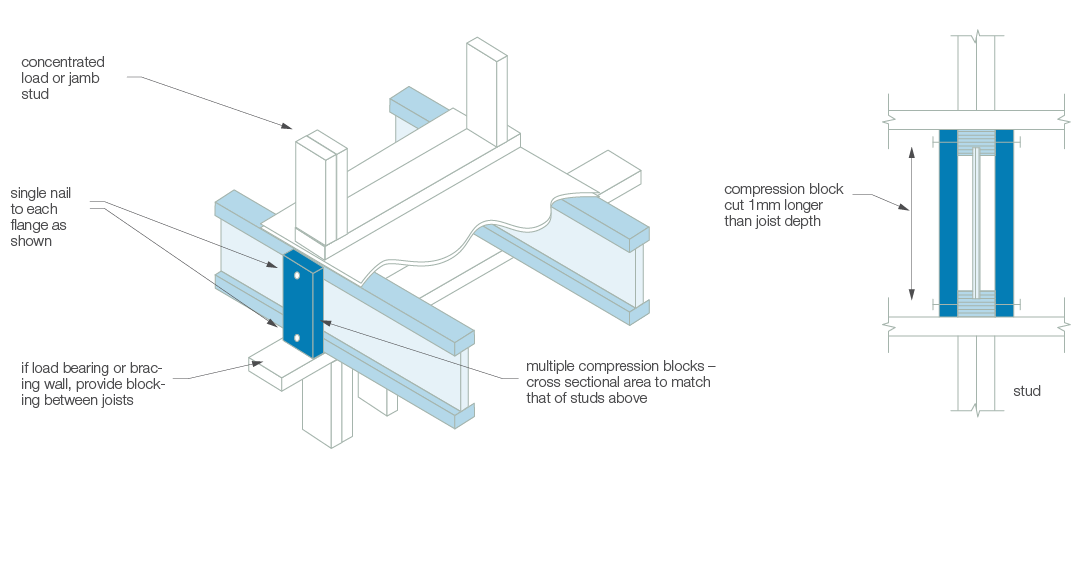

  • External loadbearing support of concentrated loads
Previous Image Next Image

Joist Support at Internal Walls

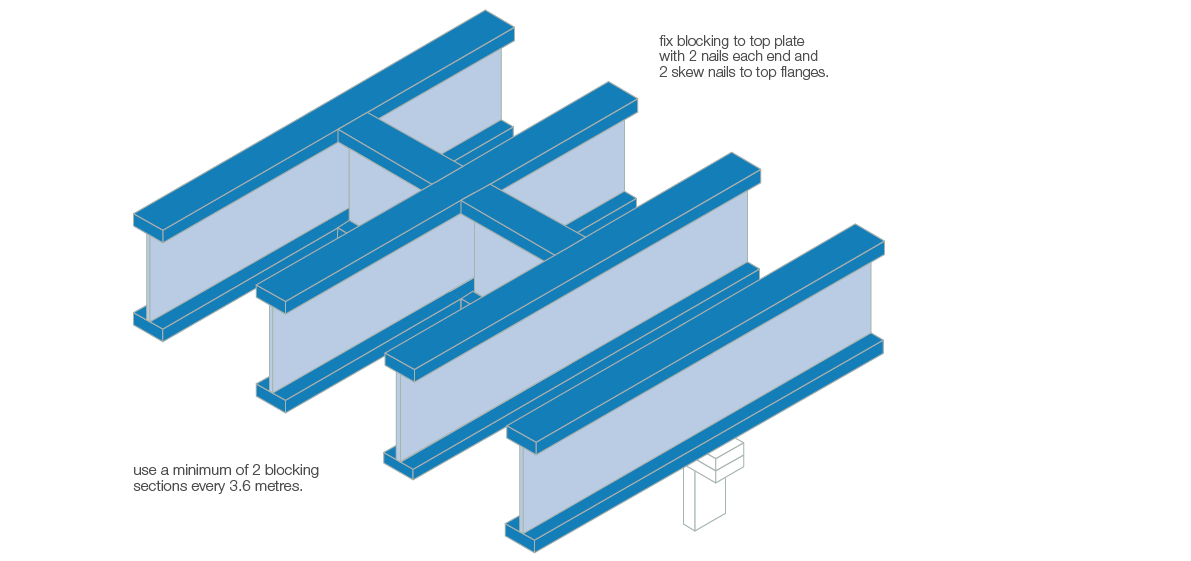

  • Internal support detail with minimum blocking
  • Internal support with loadbearing walls over
  • Internal loadbearing support of concentrated loads
Previous Image Next Image

Web Stiffener Installation

  • Web stiffener installation
  • Web stiffener installation opposite side
  • Web stiffener installation over wall
  • Web stiffener installation under point load
Previous Image Next Image

Timber to Timber Connection

  • Joist fixing to timber beam using partial face mount hanger
  • Joist fixing to timber beam using face mount hanger
  • Joist fixing to timber beam using top mount hanger
  • Joist fixing to timber beam using UniLedger hanger

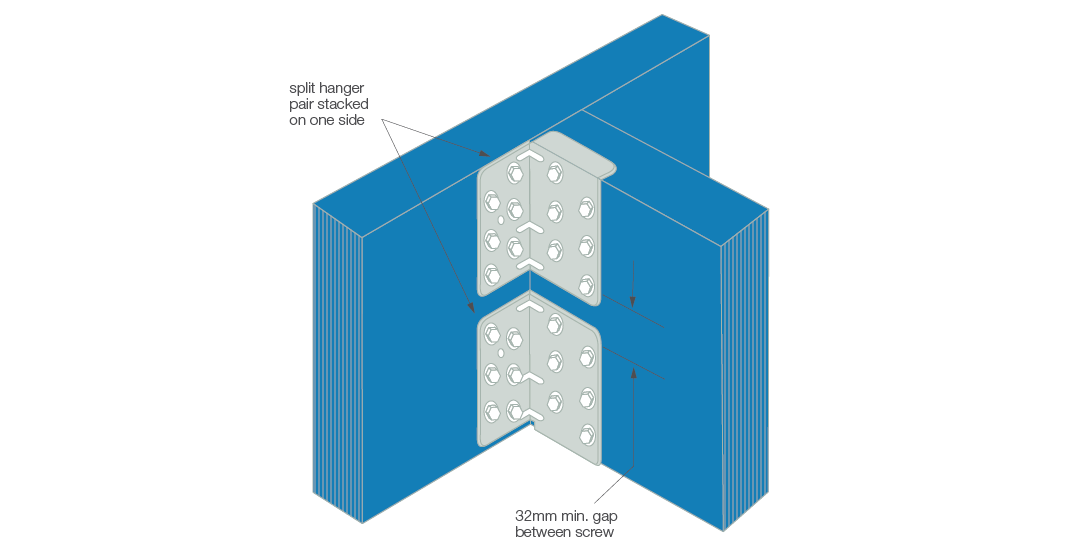

  • Joist fixing to timber beam using split hanger stacked to one side
Previous Image Next Image

Timber to Steel Connection

  • Joist fixing to steel beam using top mount hanger
  • Joist fixing to steel beam using face mount hanger
  • Joist fixing to steel beam cut in
  • Joist fixing to steel beam web cut in

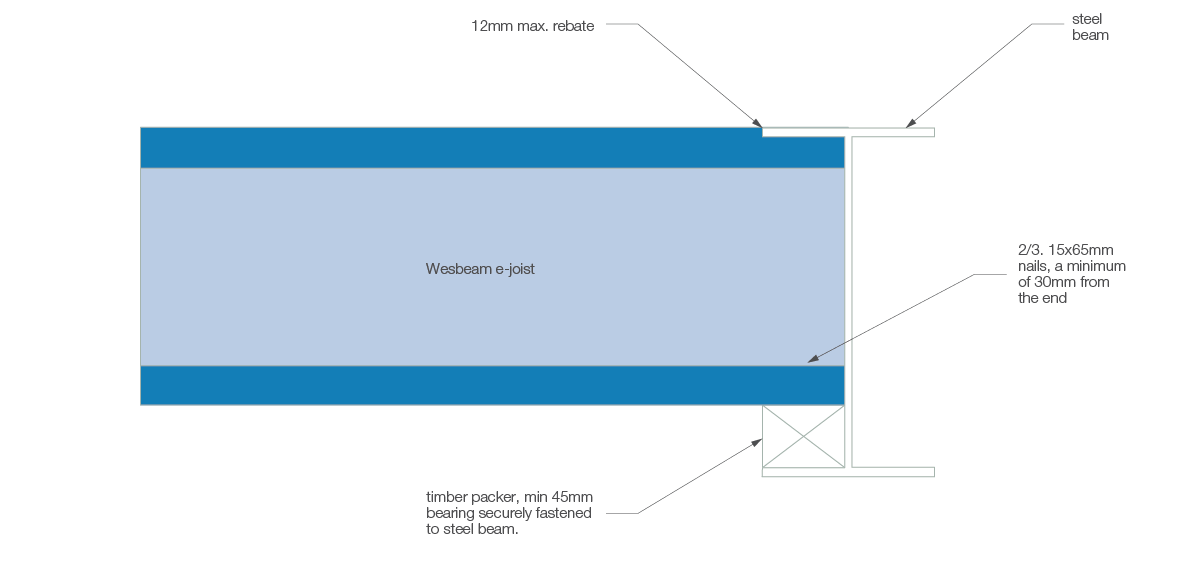

  • Joist fixing to steel beam cut in - with packer

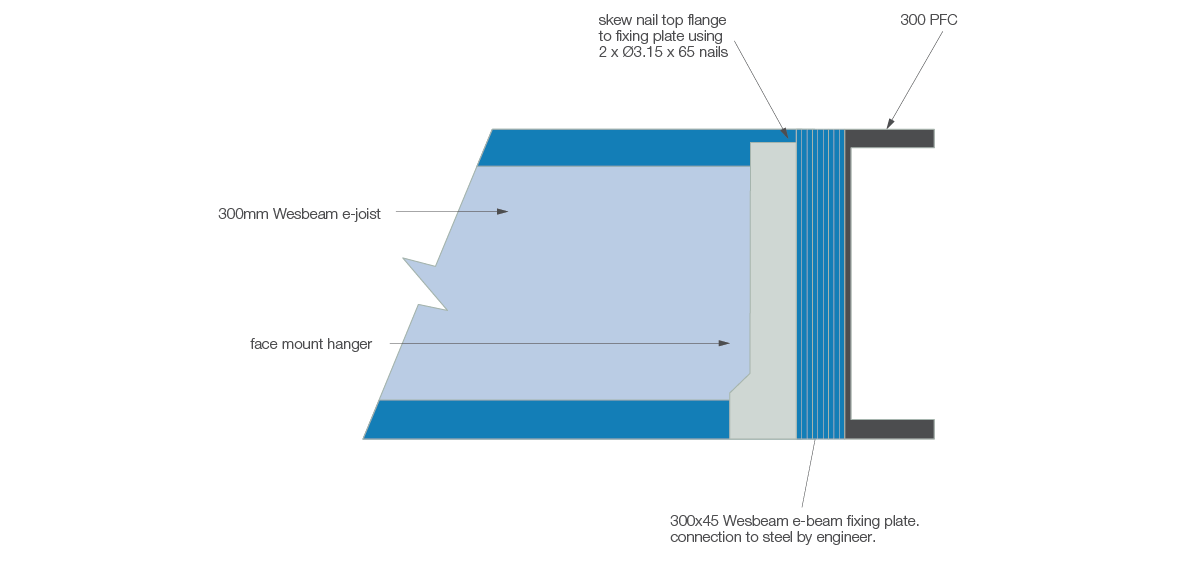

  • Joist fixing to steel PFC using face mount hanger
Previous Image Next Image

Timber to Masonry Connection

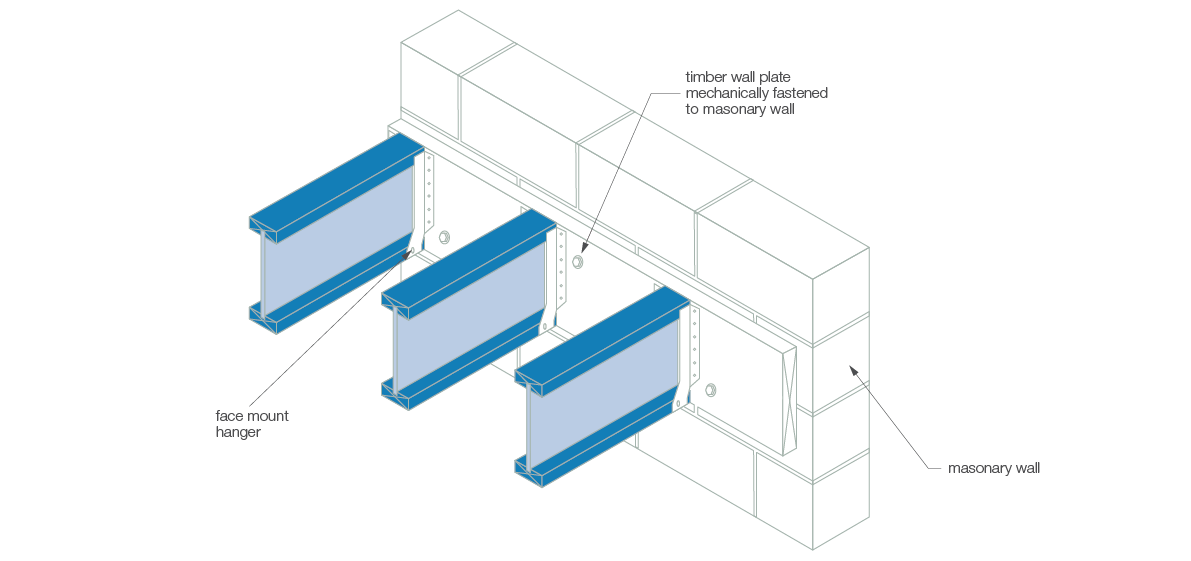

  • Joist fixing to masonry wall using face mount hanger

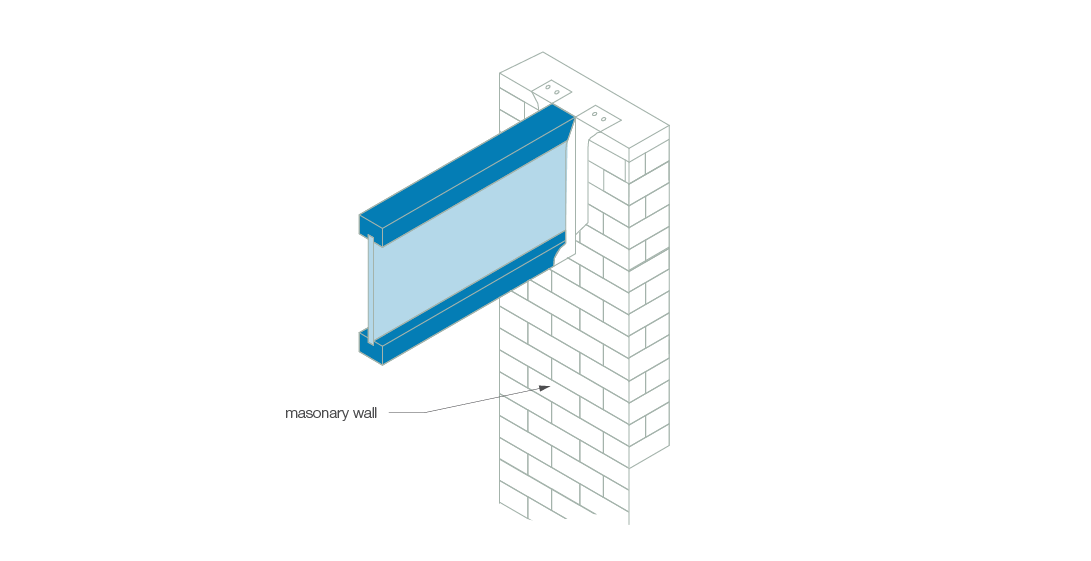

  • Joist fixing to masonry wall using top mount hanger
Previous Image Next Image

Cantilever Supporting Wall Frames

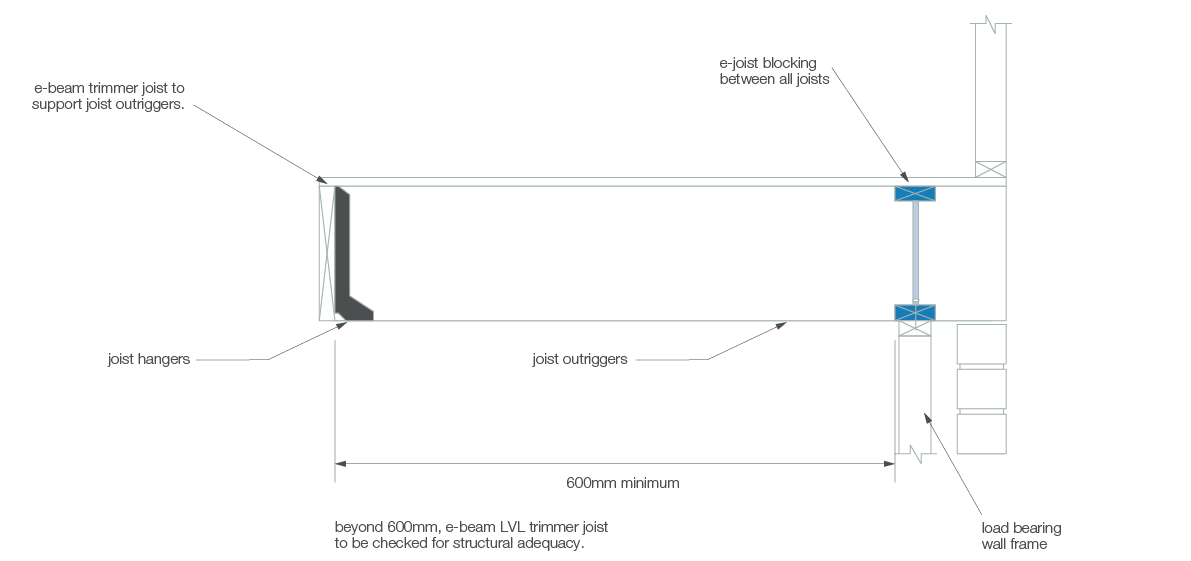

  • Brick edge cantilever

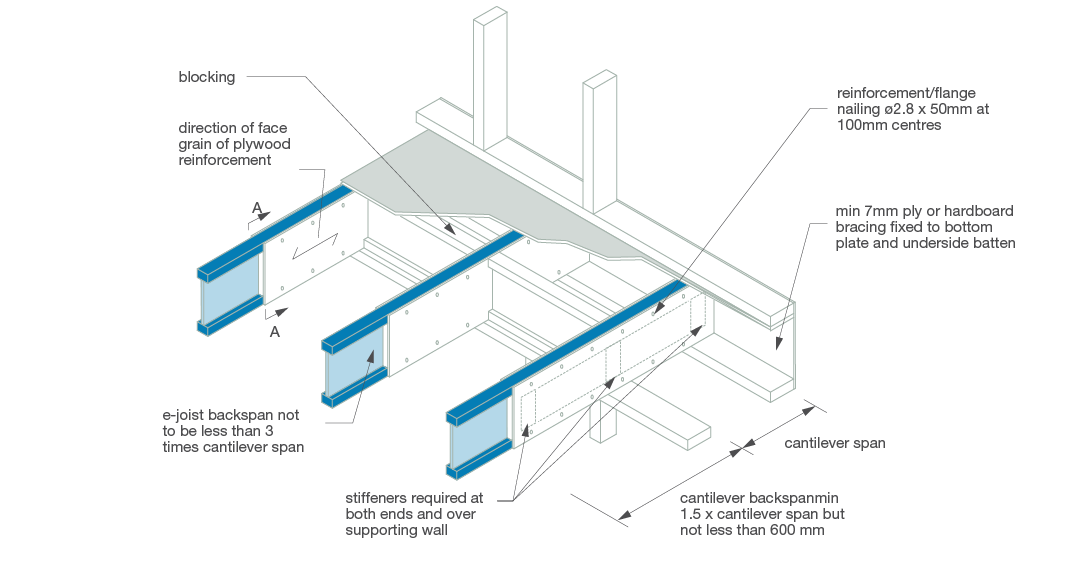

  • Loadbearing cantilever with trimmer support

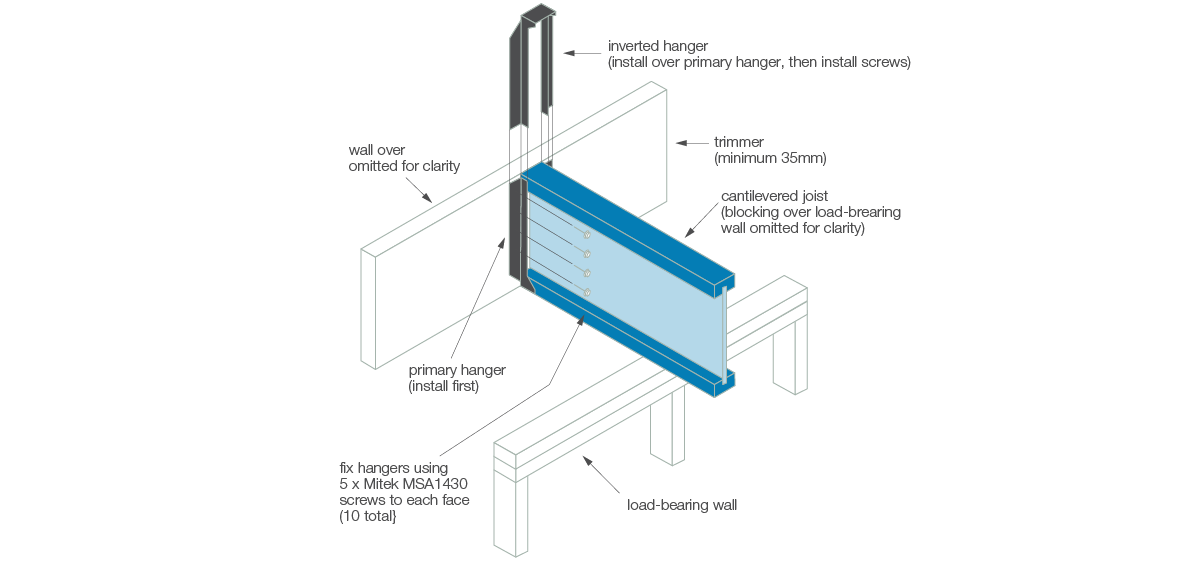

  • Loadbearing cantilever
Previous Image Next Image

Cantilever for Balcony

  • Cantilevered balcony – deck joist adjacent

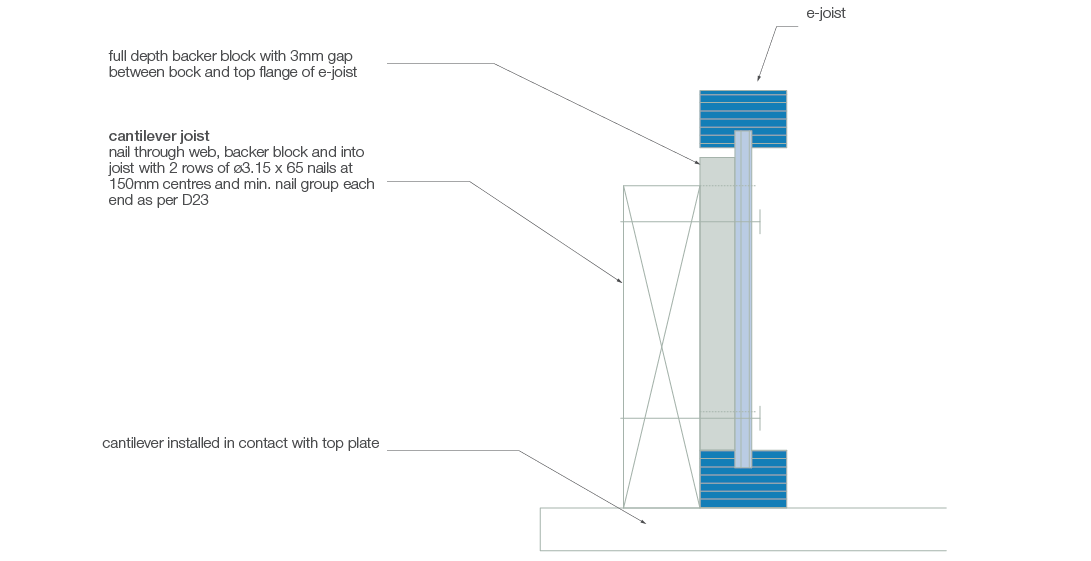

  • Cantilevered balcony – deck joist adjacent fixing detail

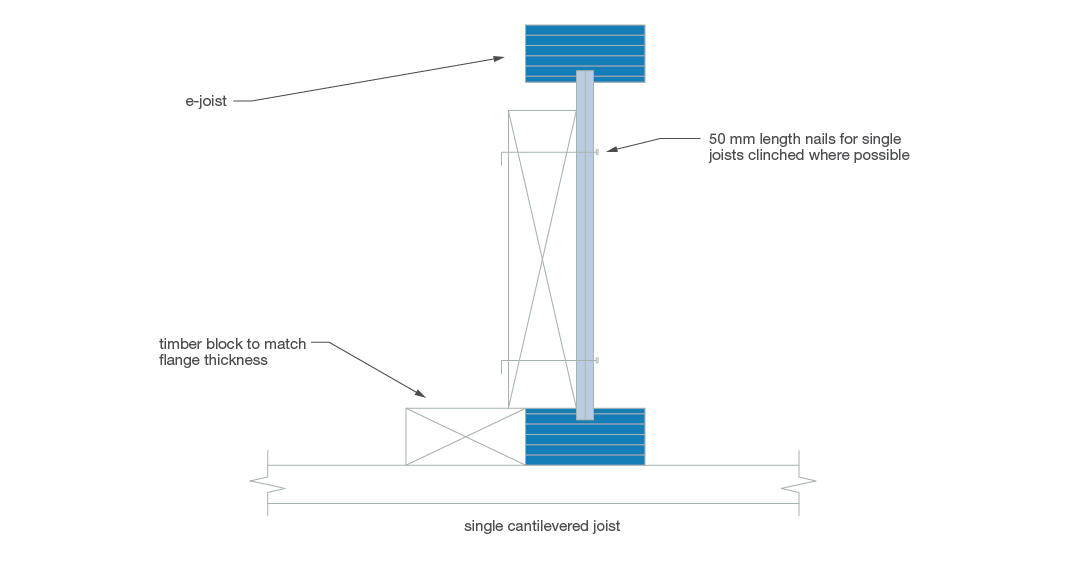

  • Cantilevered balcony – deck joist nested
  • Cantilever balcony – deck joist nested fixing detail

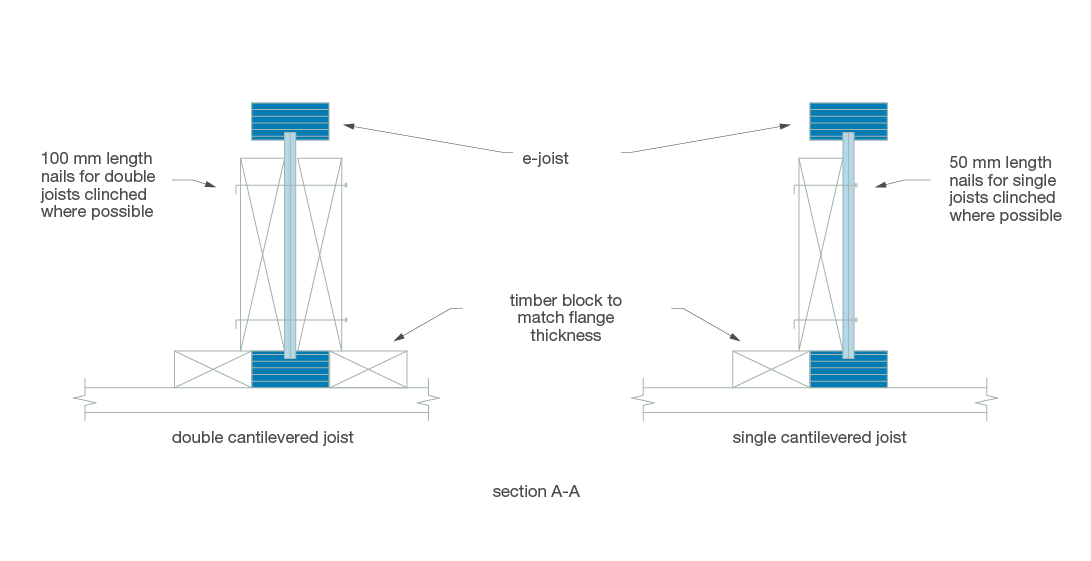

  • Cantilevered balcony - deck joist nested fixing detail section
Previous Image Next Image
Storage

General: How to handle and store your Wesbeam Laminated Veneer Lumber e-joists.

  1. Must only be stacked in the upright position to avoid any damage during storage or handling
  2. Only stack on level bearers (3.0m spacing max) providing a ground clearance of at least 150mm
  3. Do not stack e-joists on the flat
  4. Cover e-joist to keep dry while allowing for ventilation
  5. Avoid placing e-joist over areas susceptible to ponding..
