e-splay

e-splay is an LVL alternative to steel universal beams for use in the construction of stick roofs.

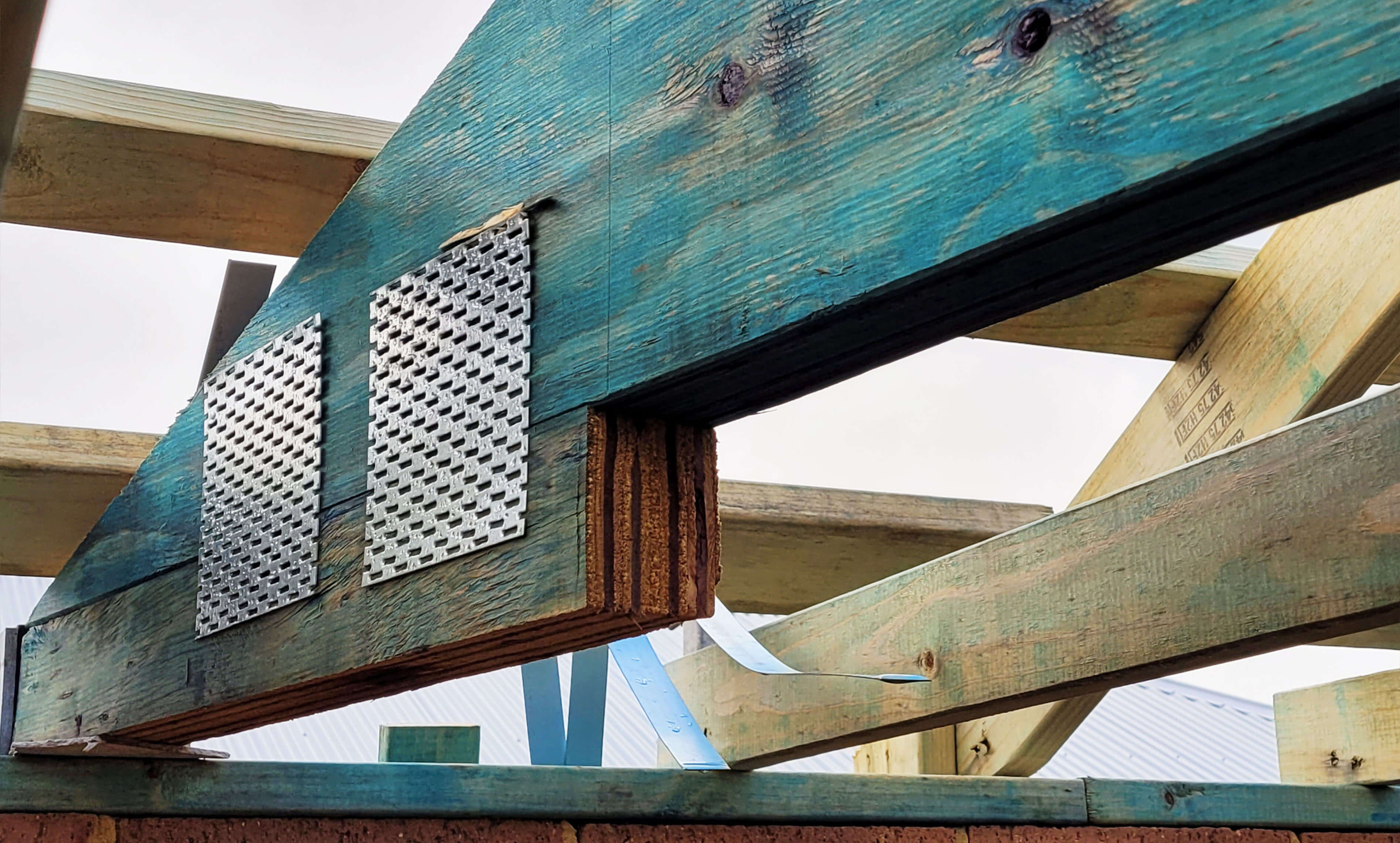

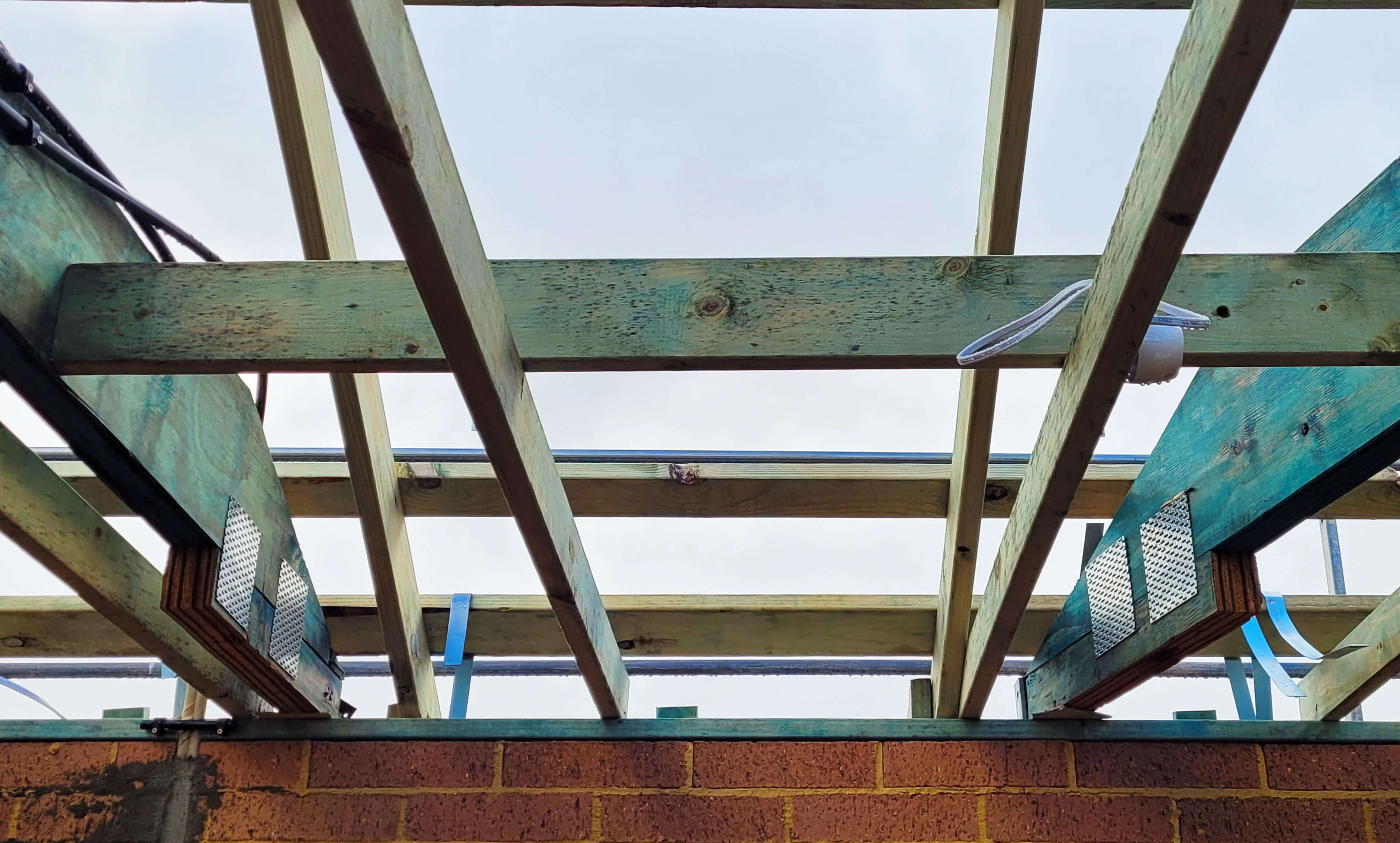

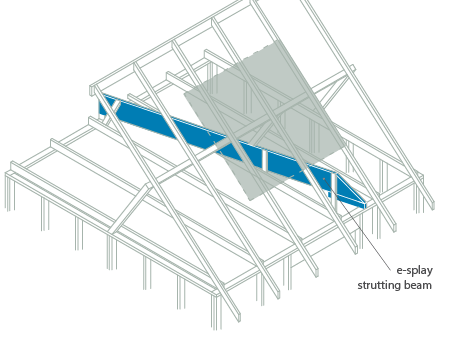

e-splay is a splayed e-beam designed to fit between the wall plate and the underside of the rafter or roof cladding, creating an LVL alternative to steel universal beams for use in the construction of stick roofs.

Features of e-splay

Application

  • Floors
  • Roofs
  • Walls
  • Formwork

Treatment Level

  • Internal
  • External
  • Max Length 6.6
  • Max DIM 400 x 82 mm

On this page

Overview

Working closely with MiTek, Wesbeam developed e-splay to overcome the ‘two thirds’ spay rule in AS1684.2 for timber products and as a cost-effective substitute for spayed steel beams.

Features:

  1. 100% factory manufactured — no on-site cutting required.
  2. e-splay beams are supplied with the splay ready cut — alleviating the need for long, potentially dangerous, splay cuts on-site.
  3. High strength yet lighter and safer to handle than the steel alternative.
  4. Chamfered edges for safer and more comfortable handling.
  5. Manufactured from 100% plantation pine.
  6. Splay cut to standardised 20° (minimum splay cut is 17.5°).
Available Sizes

e-splay LVL beam sizes can be downloaded as a PDF here.

Download now
Installation & Maintenance

General: How to handle and store you Wesbeam Laminated Veneer Lumber products.

  1. Wesbeam Laminated Veneer Lumber should be stored well clear of the ground on level bearers spaced at maximum 1800mm centres
  2. It should be covered to keep dry but still allowing for ventilation
  3. Avoid placing LVL over areas susceptible to ponding.
